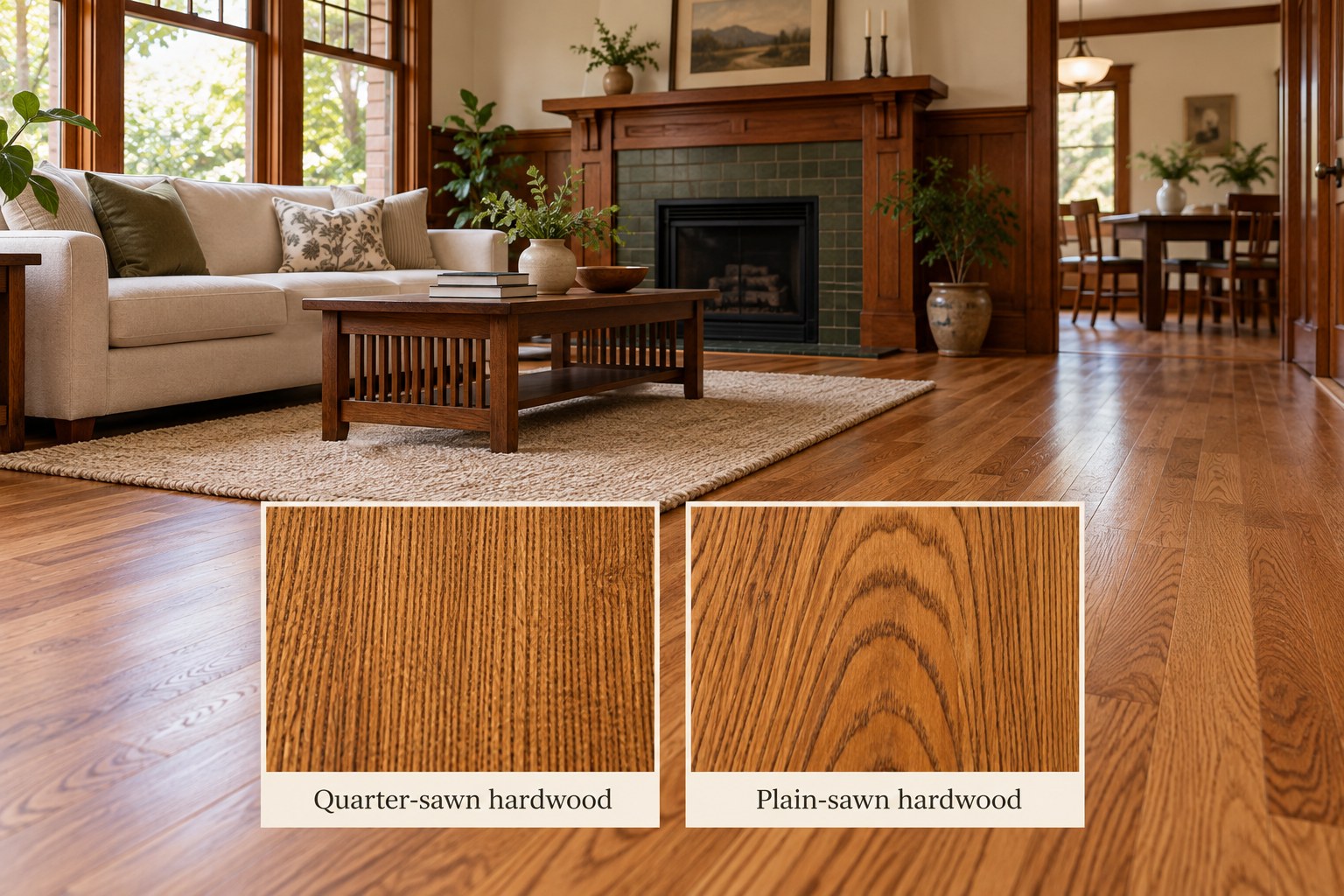

Quarter-Sawn vs. Plain-Sawn Hardwood: Choosing Grain Patterns for Historic Covina Bungalows

Craftsman bungalows built throughout Covina, CA during the early twentieth century showcase deliberate woodwork, architectural balance, and natural materials. Original builders selected flooring cuts that matched the structural demands of the local climate and the visual geometry of classic interior millwork. If you restore an original home near downtown Covina or update a foothill property, the milling method behind your wood floor dictates both its durability and its historic authenticity.

Understanding the difference between quarter-sawn and plain-sawn cuts helps you match the right grain pattern to your rooms while protecting your investment against dry Southern California heat cycles.

Wood Grain Anatomy and Historic Milling Methods

Log cutting methods determine the alignment of annual growth rings across each plank face. That physical alignment directly influences how boards react to humidity shifts and how the surface grain looks under natural light.

Quarter-Sawn Milling Characteristics

Quarter-sawing begins by quartering the log into four distinct wedges before cutting each plank perpendicular to the growth rings.

• Growth rings hit the face of the board at a 60-degree to 90-degree angle.
• The cut produces straight, vertical grain lines running parallel down the board length.
• Medullary rays become visible in white oak and red oak, creating shimmering flecks known as ray fleck or tiger striping.
• Expansion and contraction occur mostly across plank thickness rather than board width, providing superior dimensional stability.

Plain-Sawn Milling Characteristics

Plain-sawing, also known as flat-sawing, slices the log horizontally in parallel cuts from top to bottom.

• The saw blade meets growth rings at angles less than 45 degrees.
• Planks display broad, curving arches and open cathedral patterns across the face.
• Grain variations shift widely from plank to plank, giving the floor a varied, traditional hardwood texture.
• Planks respond to seasonal air changes by expanding and contracting across their full width.

Historic Integrity in Covina Craftsman Architecture

Early twentieth-century Craftsman architecture prioritized clean horizontal profiles, heavy trim, and prominent built-in cabinetry. Builders of that period regularly specified quarter-sawn white oak for prominent architectural elements because the straight, tight grain harmonized with squared door casings and wainscoting.

Quarter-sawn oak matches classic Craftsman restorations. The distinctive ray flecks complement built-in buffets, fireplace mantels, and exposed rafters common in historic neighborhoods around Covina. The uniform grain patterns keep rooms visually balanced rather than competing with decorative wood molding.

Plain-sawn flooring works well in casual living areas, bedroom wings, and vintage Spanish or ranch-style homes nearby. The open cathedral grain softens formal rooms and creates an earthy, relaxed foundation for historic spaces where you want prominent texture underfoot.

Performance in the San Gabriel Valley Climate

SGV interiors face distinct environmental pressures. Long, dry summers and intense sun exposure through expansive historic windows draw moisture directly out of organic building materials.

Plain-sawn boards shift across their width as humidity levels dip and climb. In dry summer months, wide plain-sawn planks can shrink and show slight gaps between floorboards. High-traffic living areas with heavy solar exposure need careful board widths to prevent seasonal cupping.

Quarter-sawn wood handles San Gabriel Valley dry spells with far less movement. Because dimensional movement occurs vertically rather than across the width, the seams between planks stay tight and level throughout seasonal dry cycles. That stability makes quarter-sawn boards a reliable choice for large, sunlit living rooms and open-plan Craftsman layouts.

Visual Design Choices for Your Renovation

Pairing the right grain pattern with your architectural layout ensures your flooring looks authentic to the home.

• Select quarter-sawn oak for formal living rooms, dining rooms with heavy wood trim, and entryways where classic Craftsman detail dominates.
• Use hardwood flooring with plain-sawn planks to introduce varied warmth in smaller bedrooms, hallways, or converted family dens.
• Consider board width carefully. Wide-plank profiles highlight cathedral patterns in plain-sawn cuts, while narrow strips maximize the vertical lines of quarter-sawn boards.
• Match your sheen to your cut. Matte or satin finishes allow delicate medullary flecking in quarter-sawn oak to catch natural daylight without creating harsh reflections.
• Coordinate custom flooring with decorative borders. Historic bungalows often feature dark perimeter accent borders, which frame straight quarter-sawn planks cleanly.
• Protect your layout from foot traffic and grit by placing tailored area rugs in busy hallways and main entries.

Professional Installation and Millwork Alignment

Historic homes present unique subfloor challenges, including settled joists and uneven subfloor planks. Achieving a flat, quiet floor demands careful board spacing and accurate subfloor prep. Booking an experienced crew for your hardwood installation protects antique door jambs, matches original baseboard heights, and ensures planks acclimate properly to the local microclimate before fastening.

Visit Our Covina Showroom

Comparing wood grain patterns in person gives you an accurate sense of how medullary rays, plank widths, and light reflection behave in your home. Nemeth Family Interiors invites you to visit our showroom at 700 Arrow Hwy, Covina, CA to view full-size hardwood displays, handle real wood samples, and review custom milling profiles with our team. We also arrange an in-home visit with a free estimate to evaluate subfloor conditions, confirm exact square footage, and guide your historic bungalow renovation.
